SDO 05-8-45 and
SDO 05-10-30 FU-I

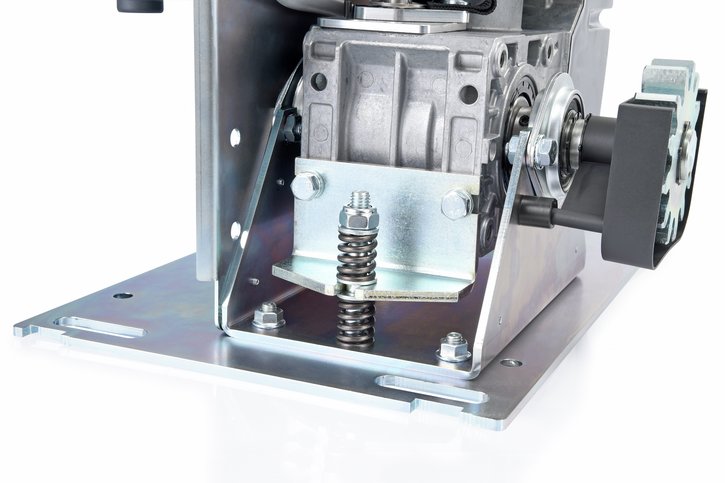

Designed for heavy and wide industrial sliding gates, these operator systems impress with their robust motor unit built for durability. The control system integrated in the operator housing has an LC display, which is used to program the drive easily and clearly. The operator housing is temperature and weather-resistant. The particular strength of the SDO 05-8-45 and SDO 05-10-30 FU-I is how it guarantees a controlled door/gate movement that complies with standards.

SDO 05-8-45

For sliding gates up to 1,100 kg: The SDO 05-8-45 is suitable for sliding gates with a maximum width of 18 m and weighing up to 1,100 kg. Programming partial openings is possible, and the system also has an automatic feed function and a programmable output for additional functions.

SDO 05-10-30 FU-I

With frequency converter technology: The SDO 05-10-30 FU-I is based on the SDO 05-8-45, but thanks to its extended design, it can also move sliding gates weighing up to 1,300 kg. The technical highlight is the integrated frequency converter, which allows soft starts and soft stops to be implemented and positions and speeds for door travel when opening and closing to be programmed separately as required.

Download Documents

Technical Data

PDF – 1.5 MB
Language: English
