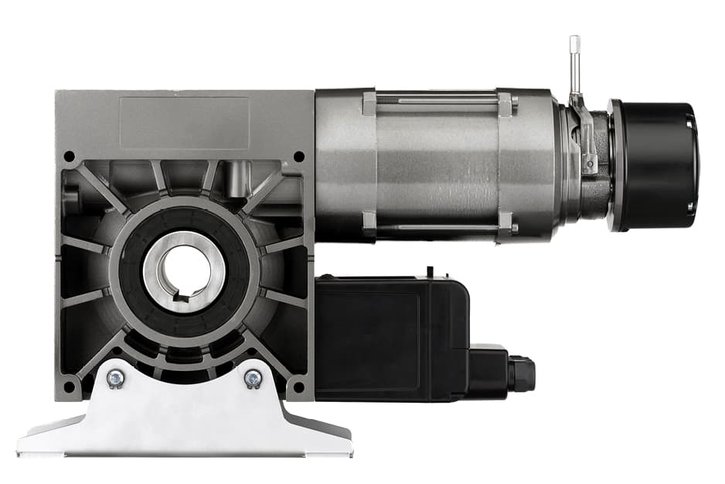

High-Speed Door Operators for PVC Film Doors and High-Speed Roller Shutters

Find out all about the MTZ Series Operators

Whether in industrial buildings, logistics centers, or deep-freeze warehouses: High-speed doors and PVC film doors are used wherever short opening and closing times are critical. They provide protection from drafts, dust, and noise. This allows workflows to be optimized and energy costs saved.

Regardless of Which Manufacturer your High-Speed Operator is from: You can use it with an MTZ Series Operator!

They are our optimal and safe solution for both light and heavy PVC film doors as well as all high-speed roller shutter doors. The advantage: We offer you a operator solution adapted to your needs that we implement for you on site, flexibly, and quickly.

Key Features of our High-Speed Door Operators

  • Various gearbox/motor combinations offer a power range from 40 to 1,150 Nm and a speed of 45 to 180 rpm at 50 Hz
  • Also available as a variant with frequency converter
  • Compact direct-mount operators, easy installation
  • Maintenance- and wear-free safety catch for maximum safety
  • Strong holding force thanks to electromagnetic motor brake
  • Thermal protection in motor winding
  • Higher Duty version for particularly high cycle rates
  • Also available with working current brake

Sizes of our MTZ Operators

Our MTZ operators are available in five variants with different gearbox and motor sizes:

  • MTZ 05
  • MTZ 20
  • MTZ 30
  • MTZ 50
  • MTZ 70

Our high-speed roller shutter operators are available as the MTZ-S for mains operation with reversing contactor control and as the MTZ-FC for operation with a frequency converter.

Our recommendation: Use an operator from the FC series for effective high-speed operation and a soft approach towards the end positions in both directions.

Download Documents

Commercial Door Operators Brochure

PDF – 6.8 MB
Language: English

Marantec control unit for industrial doors

How can MTZ Operators be Controlled?

Use our CS 320 comfortable control unit for controlling roller shutters. It is available with or without a frequency converter, depending on your requirements.

To the Industrial Door Control Units

Would you like to know which Gearbox/Motor Combination you require for your High-Speed Door or PVC Film Door?

Custom versions, such as additional voltages and frequencies and different output speeds, are possible. Feel free to contact us!

Contact us

Can't find your Installation Manual?

Operating manuals for our drive systems and products on safety instructions, installation, commissioning, operation, and maintenance can be found in our search for installation manuals.

To the Installation Manuals
